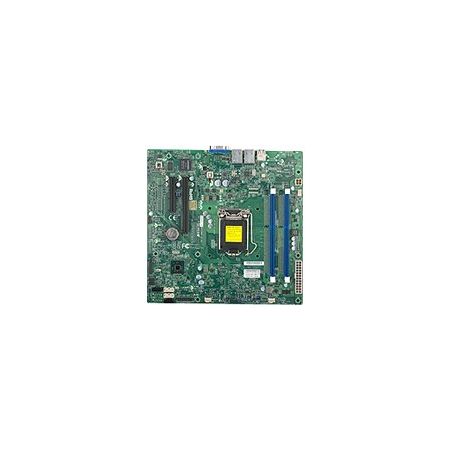

Supermicro X10SLL-F Server Motherboard - Intel C222 Chipset - Socket H3 LGA-1150 - Retail Pack Item # 668736
Share
-
Email This Page
- Note: You can share Individual Items, entire Shopping Carts, and Shopping Lists.
-
Share this Item
Close
Print
668736
was removed.
Thank you, you will now be redirected to comparisons.
Just a moment while we prepare the page
Check In-Store Availability
Description
Supermicro leverages its deep expertise in server technology to bring customers the newest generation in UP server solutions with the X10 series of serverboards. These advanced technology building blocks offer the best server performance.With best performance, leadership I/O, focus on energy efficiency, and continued advancements in customer support and services, Supermicro server solutions are the optimal solution for SMB, enterprise, and public sector cloud computing, Hadoop, big data, data centers, HPC, storage, and general server needs.
Product Details
| Item # | 668736 |
| Manufacturer # | RG9430 |
| Number of SATA Interfaces | 6 |
| Hardware Features | Diagnostic LEDs, chassis intrusion detection, Watch Dog Timer |
| Onboard LEDs Header | Yes |
| Total Number of Onboard USB Ports | 4 |
| RAID Levels | 0; 1; 5; 1+0 |
| Memory Speed Supported | 1.60 GHz; 1.33 GHz; 1.07 GHz |
| Product Series | X10 |
| Processor Supported | Core i3; Pentium; Celeron; Xeon |
| BIOS Features | IPMI support, SMBIOS 2.7 support, DMI 2.7 support, ACPI 5.0 support |
| Compatible Processors | Pentium, Celeron, Core i5, Core i3, Core i7, Xeon E3-1200 series |
| Number of Network (RJ-45) Ports | 3 |
| Certifications & Standards | ACPI 5.0 |
| Total Number of USB Ports | 4 |
| BIOS Type | AMI |
| Serial Port | Yes |
| Internal Interfaces | 2 x USB 2.0 - header ¦ 1 x serial - header ¦ 1 x USB 3.0 - Type A ¦ 1 x USB 3.0 - header |
| Graphics Controller Manufacturer | ASPEED |
| Registered or Buffered | Unbuffered |
| width | 9.6 in |
| Number of Memory Slots | 4 |
| Storage Interfaces | SATA-600 - connector(s): 2 x 7pin Serial ATA - 2 device(s) - RAID 0 / RAID 1 ¦ SATA-300 - connector(s): 4 x 7pin Serial ATA - 4 device(s) - RAID 0 / RAID 1 / RAID 10 / RAID 5 |
| depth | 9.6 in |
| Product Name | X10 Series X10SLL-F Server Motherboard |
| Number of PCI Express x16 Slots | 1 |
| Total Processor Supported | 1 |
| Total Number of PCI Express Slots | 3 |
| manufacturer | Supermicro Computer, Inc |
| 64-bit Processing | Yes |
| Bus Clock | 1600 MHz, 1333 MHz, 1066 MHz |
| VGA | Yes |
| Compatibility | CSE-113MTQ-330CB; CSE-113MTQ-R400CB; CSE-512F-350B; CSE-512F-441B; CSE-811TQ-441B; CSE-813MTQ-350C; CSE-813MTQ-441CB; CSE-813MTQ-R400CB; CSE-732D4-903B; CSE-731i-300B; CSE-732D4-500B; CSE-732D4-865B; CSE-733TQ-500B; CSE-733TQ-665B |
| Max Processors Qty | 1 |
| RAID Supported | Yes |
| brand name | Supermicro |
| Max Size | 32 GB |
| Maximum Memory | 32 GB |
| Supported RAM Integrity Check | ECC |
| controller type | Serial ATA/600; Serial ATA/300 |
| Hardware Monitoring | CPU core temperature, chassis temperature, CPU fan tachometer, chassis fan tachometer, system voltage, CPU core voltage |
| Number of Onboard USB 2.0 Ports | 2 |
| Gigabit Ethernet | Yes |
| Network Controller | Intel I217LM / I210AT |
| Network (RJ-45) | Yes |
| Number of USB 2.0 Ports | 4 |
| Graphics Controller | ASPEED AST2400 |
| Package Type | Retail |
| Onboard Serial Header | Yes |
| Memory Standard | DDR3-1600/PC3-12800; DDR3-1333/PC3-10600; DDR3-1066/PC3-8500 |
| Memory Form Factor | DIMM; UDIMM |
| Number of Total Expansion Slots | 3 |
| Processor Socket | LGA1150 Socket |
| Chipset Model | C222 |
| Chipset Manufacturer | Intel |
| Graphics Controller Model | AST2400 |
| form factor | Micro ATX |
| Memory Technology | DDR3 SDRAM |
| Onboard Video | On-board Video Chipset |
| PCI Express Standard | PCI Express 3.0; PCI Express 2.0 |
| Number of Onboard USB 3.0 Ports | 2 |
| model name | X10SLL-F |
| Number of PCI Express x8 Slots | 2 |
| Show More ▾ |
